Compact Piezo Actuator

TOP > PRODUCTS > Piezo Actuator : MechaTrans® > DD-Series

MechaTrans® DD-Series

MTDD Series

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD03S50F3 Datasheet Download	15×3×5	50	3	0.06	1500	0.03		110,000	104,500	88,000	77,000
MTDD06S100F10 Datasheet Download	20×6×7	100	10	0.10	700	0.2		88,000	83,600	70,400	61,600
MTDD06S100F11 Datasheet Download	20×6×7	100	11	0.11	900	0.36		93,500	88,825	74,800	65,450
MTDD06S330F7 Datasheet Download	22×6×7.8	330	7	0.02	400	0.86		104,500	99,275	83,600	73,150
MTDD08S180F32 Datasheet Download	28×8×8	180	32	0.18	900	0.9		99,000	94,050	79,200	69,300
MTDD08S300F16 Datasheet Download	26×8×7	300	16	0.053	460	0.7		99,000	94,050	79,200	69,300
MTDD08S350F18 Datasheet Download	26×8×7	350	18	0.051	500	0.8		104,500	99,275	83,600	73,150
MTDD12S90F5 Datasheet Download	22×12×5.12	90	5	0.06	700	0.36		110,000	104,500	88,000	77,000
MTDD12S600F80 Datasheet Download	46.8×12×12.6	600	80	0.13	300	6.75		158,000	150,000	142,500	135,400
MTDD16S750F90 Datasheet Download	52×16×14	750	90	0.12	230	8.0		132,000	125,400	105,600	92,400
MTDD16S830F80 Datasheet Download	52×16×14	830	80	0.10	230	11.8		137,500	130,625	110,000	96,250
MTDD16S860F64 Datasheet Download	52×16×14	860	64	0.07	195	11.7		143,000	135,850	114,400	100,100
MTDD15.6S1600F70 Datasheet Download	107×156×14.4	1600	70	0.044	110	31.0		389,400	369,930	311,520	272,580

*1 : Nominal value　 *2 : Blocked-Free

MTDD Series - Vacuum environment compatible type

Product name	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid model	price [￥]
Product name	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD12S600F80-VC Datasheet Download	46.8×12×12.6	600	80	0.13	300	2.6		200,000	190,000	180,500	171,500

※ prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

MTDD Series - 75V type

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD08S250F12 Datasheet Download	26×8×7	250	12	0.048	450	1.4		66,000	62,700	52,800	46,200

*1 : Nominal value　 *2 : Blocked-Free

MTDD Series - Non Magnetic

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD16S860F64NM Datasheet Download	52×16×14	860	64	0.07	195	11.7		154,000	146,300	123,200	107,800

*1 : Nominal value　 *2 : Blocked-Free

MTDD Series - Non Magnetic & Vaccum Compatible

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD10S580F80NM-PS Datasheet Download	64×10×21.4	580	80	0.14	282	11.6		198,000	188,100	158,400	138,600

*1 : Nominal value　 *2 : Blocked-Free

MTDD Series - With Linear Bush

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD23S150F800LB Datasheet Download	90×54×27	150	800	5.33	1600	23.1		385,000	365,750	308,000	269,500

*1 : Nominal value　 *2 : Blocked-Free

MTDD Series - 75 volt（new）

Product name	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid model	price [￥]
Product name	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid model	1pc	5pcs & above	25pcs & above	100pcs & above
MTDD08S250F12 Datasheet Download	26×8×7	250	12	0.048	450	1.4		66,000	62,700	52,800	46,200

※ prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

*1 : Nominal value　 *2 : Blocked-Free

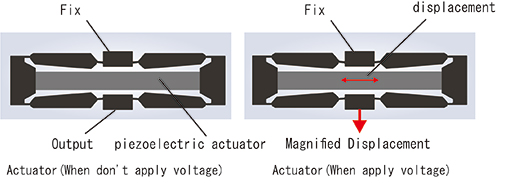

The MechaTrans®DD-Series is a compact piezoelectric actuators that can generate large output strokes, which is 10 times and above larger than the stroke of a multilayer stacked piezoelectric actuator. The MechaTrans®DD-Series consists of a stroke magnification / amplification structure and multilayer stacked piezoelectric actuators. With the stroke magnification structure, the stroke is magnified to overcome the limitation of the multilayer stacked piezoelectric actuator. The MechaTrans®DD-Series is designed flat and compact in size, therefore the efficiency of the space utilization is high. The output stroke is converted to 90 degree in direction compare to the original output stroke of the multilayer stacked piezoelectric actuator. When a voltage is applied to the MechaTrans®DD-Series, it elongates as shown in Fig. 2.

Features of the MechaTrans®DD-Series

large output stroke
Flat and compact.
Output stroke of the piezoelectric actuators is converted to 90 degrees in direction.
The MechaTrans®DD-Series elongates as Fig. 2 when a voltage applied.
Output stroke direction is opposite to the MechaTrans®D-Series

The operating principle of the MechaTrans®DD-Series

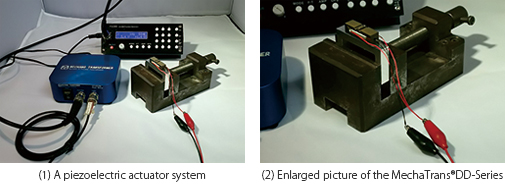

Mechanical tapped holes are fabricated at both sides of the MechaTrans®DD-Series. Lead wires of red and black(white) are attached at the piezoelectric actuators. Fig. 1 shows an example of the connection between the driver and the piezoelectric actuators. A resistance may be needed in between depend on the driving conditions. When a voltage is applied to the piezoelectric actuators, the MechaTrans®DD-Series elongate as shown in Fig. 2.
