MTDD12S90F5[Datasheet Download]

Specifications

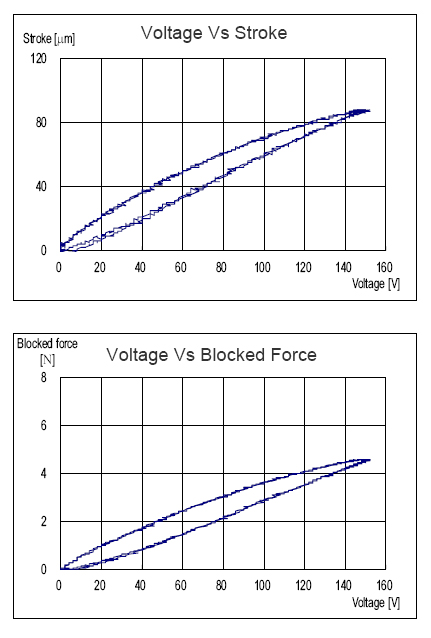

・Open-loop stroke： 90 μm @ 150V (fixed-free)
*Tolerance value: 72～108 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.06 N/μm
・Resonace frequency(fixed-free): 700 Hz
*Tolerance value: 560～840 Hz
・Blocked force: 5 N (*Tolerance value: 4.0～6.0N)
・Capacitance: 0.36 μF
・Dimension: 22x12x5.12 mm
・Mechanical interface: M2.0 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 4.4 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

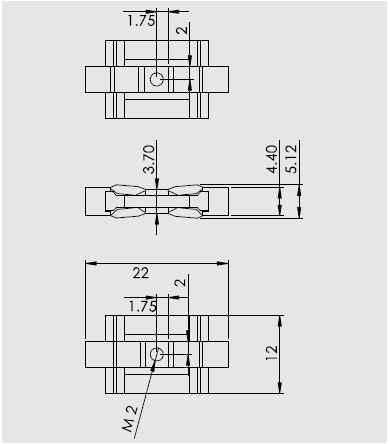

Geometry
