MTDD16S750F90[Datasheet Download]

Specifications

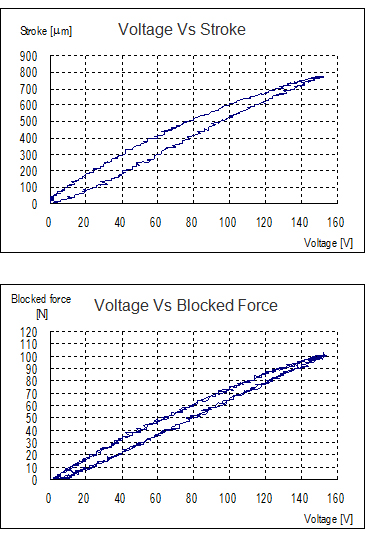

・Open-loop stroke： 750 µm @ 150V (fixed-free)
*Tolerance value: 600～900 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.12 N/µm
・Resonance frequency(blocked-free): 230 Hz
*Tolerance value: 185～280 Hz
・Blocked force: 90 N (*Tolerance value: 72～110 N)
・Capacitance: 8.0 µF
・Dimension: 52x16x14 mm
・Mechanical interface: 2-M3 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 60 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

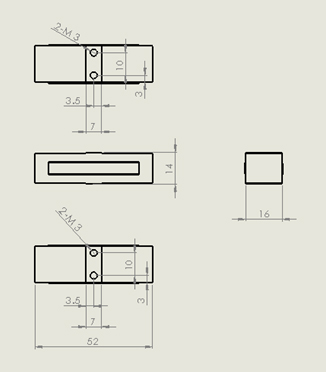

Geometry
