MechaTrans® D-Series
MTD Series
| Product name | Outoline dimension[mm] W×D×H |
Displacement [μm] |
Blocked force [N] |
Stiffness [N/μm] |
Resonance frequency [Hz] |
Capacitance [μF] |
Solid Model |
Price [￥] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1pc | 5pcs & above |
25pcs & above |
100pcs & above |
||||||||
| MTD03S50F3 Datasheet Download |
15×3×5 | 50 | 3 | 0.06 | 2000 | 0.03 |  |
110,000 | 104,500 | 88,000 | 77,000 |
| MTD08S250F27 Datasheet Download |
22×8×8 | 250 | 27 | 0.11 | 790 | 0.85 | |
93,500 | 88,825 | 74,800 | 65,450 |
| MTD08S270F25 Datasheet Download |
22×8×8 | 270 | 25 | 0.09 | 650 | 0.85 | 93,500 | 88,825 | 74,800 | 65,450 | |
| MTD08S300F25 Datasheet Download |
26×8×8 | 300 | 25 | 0.08 | 500 | 0.85 | |
99,000 | 94,050 | 79,200 | 69,300 |
| MTD16S750F90 Datasheet Download |
52×16×16 | 750 | 90 | 0.12 | 290 | 8.5 | |
132,000 | 125,400 | 105,600 | 92,400 |
| MTD16S750F120 Datasheet Download |
52×16×16 | 750 | 120 | 0.16 | 320 | 11.5 | 137,500 | 130,625 | 110,000 | 96,250 | |
| MTD16S800F90 Datasheet Download |
52×16×16 | 800 | 90 | 0.11 | 280 | 3.2 | 137,500 | 130,625 | 110,000 | 96,250 | |
| MTD16S830F100 Datasheet Download |
52×16×16 | 830 | 100 | 0.12 | 290 | 11.5 | 137,500 | 130,625 | 110,000 | 96,250 | |
| MTD20S160F920 Datasheet Download |
21.1×37×90 | 160 | 920 | 5.75 | 850 | 25 | |
297,000 | 282,150 | 237,600 | 207,900 |
MTD Series - Vacuum environment compatible type
| Product name | Outoline dimension[mm] W×D×H |
Displacement [μm] |
Blocked force [N] |
Stiffness [N/μm] |
Resonance frequency [Hz] |
Capacitance [μF] |
Solid model |
price [￥] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1pc | 5pcs & above |
25pcs & above |
100pcs & above |
||||||||
| MTD08S200F17-VC Datasheet Download |
22×8×8 | 200 | 17 | 0.085 | 700 | 0.32 | 110,000 | 104,500 | 88,000 | 77,000 | |
※ prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.
MTD Series - 75V type
| Product name | Outoline dimension[mm] W×D×H |
Displacement [μm] |
Blocked force [N] |
Stiffness [N/μm] |
Resonance frequency [Hz] |
Capacitance [μF] |
Solid model |
price [￥] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1pc | 5pcs & above |
25pcs & above |
100pcs & above |
||||||||
| MTDD08S250F12 Datasheet Download |
26×8×8 | 250 | 14 | 0.056 | 500 | 1.4 | 66,000 | 62,700 | 52,800 | 46,200 | |
※ prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.
*1 : Nominal value *2 : Blocked-Free
The MechaTrans®D-Series is a compact piezoelectric actuators that can generate large output strokes, which is 10 times and above larger than the stroke of a multilayer stacked piezoelectric actuator. The MechaTrans®D-Series consists of a stroke magnification / amplification structure and multilayer stacked piezoelectric actuators. With the stroke magnification structure, the stroke is magnified to overcome the limitation of the multilayer stacked piezoelectric actuator. The MechaTrans®D-Series is designed flat and compact in size, therefore the efficiency of the space utilization is high. The output stroke is converted to 90 degree in direction compare to the original output stroke of the multilayer stacked piezoelectric actuator. When a voltage is applied to the MechaTrans®D-Series, it shrinks as shown in Fig. 2.
Features of the MechaTrans®D-Series
- large output stroke
- Flat and compact.
- Output stroke of the piezoelectric actuators is converted to 90 degrees in direction.
- The MechaTrans®D-Series shrinks as Fig. 2 when a voltage applied.
- Output stroke direction is opposite to the MechaTrans®DD-Series
The operating principle of the MechaTrans®D-Series
Mechanical tapped holes are fabricated at both sides of the MechaTrans®D-Series. Lead wires of red and black(white) are attached at the piezoelectric actuators. Fig. 1 shows an example of the connection between the driver and the piezoelectric actuators. A resistance may be needed in between depend on the driving conditions.
When a voltage is applied to the piezoelectric actuators, the MechaTrans®D-Series shrink as shown in Fig. 2.

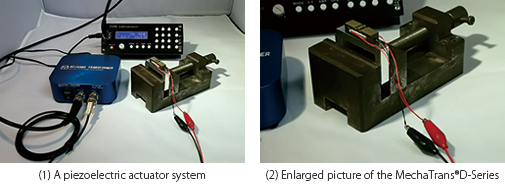

Fig.1 The piezoelectric actuator system

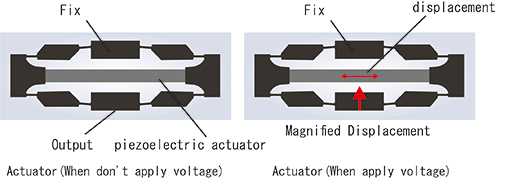

Fig.2 Operating principles of the MechaTrans®D-Series
MTD Series
Applications of the MechaTrans®D-Series
These are some examples of the application of the MechaTrans®D-Series.
- Positioning stage for lithography process
- Auto focus module for a camera.
- Precision pump
Operating precautions for MechaTrans®
Please confirm the following operating precautions before using MechaTrans®D-Series.
