MTDD06S330F7[Datasheet Download]

Specifications

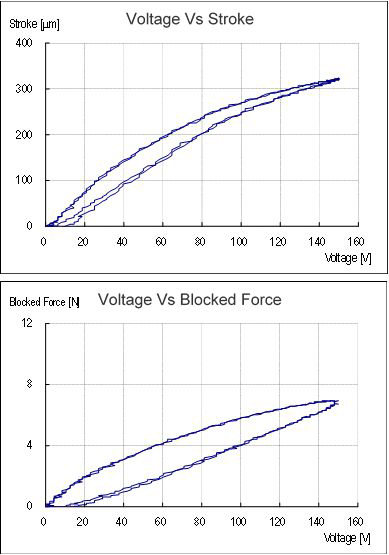

・Open-loop stroke： 330 μm @ 150V (fixed-free)
*Tolerance value: 264～396 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.02 N/μm
・Resonance frequency(fixed-free): 400 Hz
*Tolerance value: 320～480 Hz
・Blocked force: 7 N (*Tolerance value: 5～9N)
・Capacitance: 0.86 μF
・Dimension: 22x6x7.8 mm
・Mechanical interface: 2-M1.4 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 4.3 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

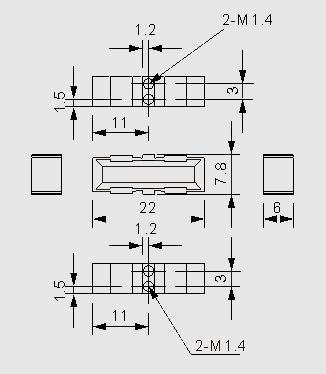

Geometry
