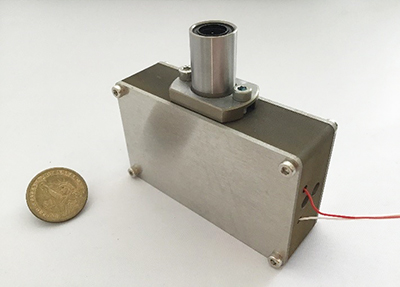

MTDD23S150F800LB[Datasheet Download]

Specifications

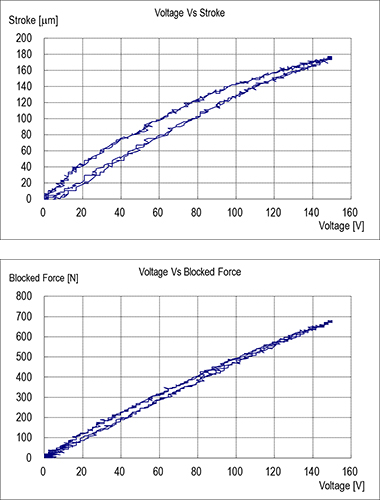

・Open-loop stroke： 150 μm @ 150V (fixed-free)
*Tolerance value: 120～180 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 5.33 N/μm
・Resonance frequency(fixed-free): 1.6 kHz
*Tolerance value: 1.28～1.92 kHz
・Blocked force: 800 N (*Tolerance value: 600～1000N)
・Capacitance: 23.1 μF
・Dimension: 90x54x27 mm
・Mechanical interface: 4-M4 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 718 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

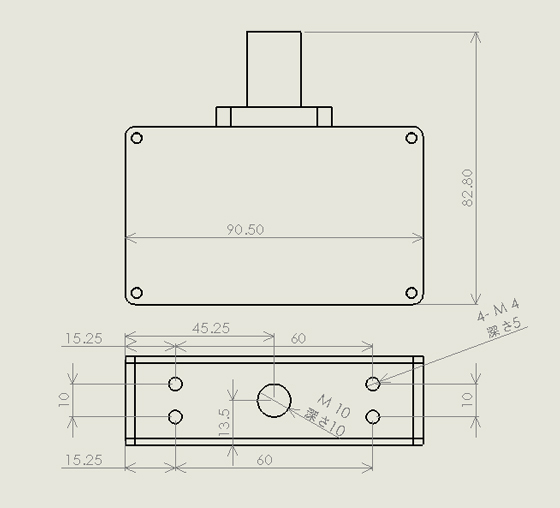

Geometry
