Fast Response Piezo Actuator

TOP > PRODUCTS > Piezo Actuator : MechaTrans® > KK-Series

MechaTrans® KK-Series

MTKK Series

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTKK03S45F4 Datasheet Download	15×3×4.8	45	4	0.09	5100	0.03		110,000	104,500	88,000	77,000
MTKK08S70F20 Datasheet Download	14.7×8×4.5	70	20	0.29	6500	0.40		88,000	83,600	70,400	61,600
MTKK08S180F30 Datasheet Download	28×8×8	180	30	0.17	3000	0.87		93,500	88,825	74,800	65,450
MTKK12S100F40 Datasheet Download	24×12×7.13	100	40	0.40	6600	1.40		104,500	99,275	83,600	73,150
MTKK16S250F180 Datasheet Download	40×16×11.8	250	180	0.72	2200	5.20		154,000	146,300	123,200	107,800
MTKK12S400F140 Datasheet Download	56×12×16	400	140	0.35	1600	8.40		132,000	125,400	105,600	92,400

*1 : Nominal value　 *2 : Blocked-Free

MTKK Series - Non Magnetic

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTKK08S180F30NM	28×8×8	180	30	0.17	3000	0.87		104,500	99,275	83,600	73,150
MTKK16S250F180NM Datasheet Download	36×16×11.8	250	180	0.72	1900	5.20		154,000	146,300	123,200	107,800

*1 : Nominal value　 *2 : Blocked-Free

MTKK Series - Non Magnetic & Vaccum Compatible

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTKK08S60F17NM-VC Datasheet Download	14.7×8×4.5	60	17	0.28	7400	0.15		132,000	125,400	105,600	92,400
MTKK12S200F55NMVC Datasheet Download	56×12×16	200	55	0.28	1500	1.28		308,000	292,600	246,400	215,600

*1 : Nominal value　 *2 : Blocked-Free

MTKK Series – 圧電素子交換型

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTKK16S400F170R Datasheet Download	72×21×15	400	170	0.43	1200	12.5		198,000	188,100	158,000	138,600
MTKK16S550F140R Datasheet Download	72×21×15	550	140	0.25	970	12.5		198,000	188,100	158,000	138,600

*1 : Nominal value　 *2 : Blocked-Free

MTKK Series – With Parallel Spring

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	Price [￥]
	Outoline dimension[mm] W×D×H	Displacement [μm]	Blocked force [N]	Stiffness [N/μm]	Resonance frequency [Hz]	Capacitance [μF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTKK05S300F80PS Datasheet Download	58×5×25	300	80	0.27	1500	3.22		121,000	114,950	96,800	84,700
MTKK10S300F120PS Datasheet Download	84×10×36.8	300	138	0.46	1170	12		269,500	256,025	215,600	188,650

*1 : Nominal value　 *2 : Blocked-Free

The MechaTrans®KK-Series is a High Speed piezo actuator that has a higher rigidity/stiffness and higher resonance frequency compare to the MechaTrans®DD-Series or the MechaTrans®D-Series. Therefore the High Speed MechaTrans®KK-Series has a shorter rise time. The High Speed MechaTrans®KK-Series consists of a stroke magnification / amplification structure and multilayer stacked piezoelectric actuators. With the stroke magnification structure, the stroke is magnified to overcome the limitation of the multilayer stacked piezoelectric actuator (piezo actuator). However, the magnifiation / amplification ratio is smaller than the MechaTrans®DD-Series or the MechaTrans®D-Series. Like the MechaTrans®DD-Series or the MechaTrans®D-Series, the High Speed MechaTrans®KK-Series is designed flat and compact in size, therefore the efficiency of the space utilization is high. The output stroke is converted to 90 degree in direction compare to the original output stroke of the multilayer stacked piezoelectric actuator. When a voltage is applied to the High Speed MechaTrans®KK-Series, it elongates as shown in Fig. 2.

Features of the MechaTrans®KK-Series

High resonance frequency.
High speed linear actuation.
High blocked force.
Fast response / Short rise time
Flat and compact.
Output stroke of the piezoelectric actuators is converted to 90 degrees in direction.
The MechaTrans®KK-Series elongates as Fig.2 when a voltage applied.
Output stroke direction is opposite to the MechaTrans®K-Series

The operating principle of the MechaTrans®KK-Series

Mechanical tapped holes are fabricated at both sides of the MechaTrans®KK-Series. Lead wires of red and black(white) are attached at the piezoelectric actuators. Fig. 1 shows an example of the connection between the driver and the piezoelectric actuators. A resistance may be needed in between depend on the driving conditions.

When a voltage is applied to the piezoelectric actuators, the MechaTrans®KK-Series elongate as shown in Fig. 2.

Fig.1 The piezoelectric actuator system

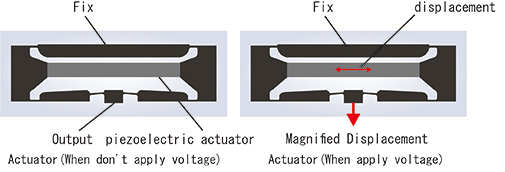

Fig.2 Operating principles of the MechaTrans®KK-Series

MTKK Series

MTKK Series - Non Magnetic

MTKK16S250F180NM

MTKK Series - Non Magnetic & Vaccum Compatible

MTKK Series – 圧電素子交換型

MTKK Series – With Parallel Spring

Applications of the MechaTrans®KK-Series

These are some examples of the application of the MechaTrans®KK-Series.

Haptics actuator
Positioning stage for lithography process
Auto focus module for a camera.
Mass flow

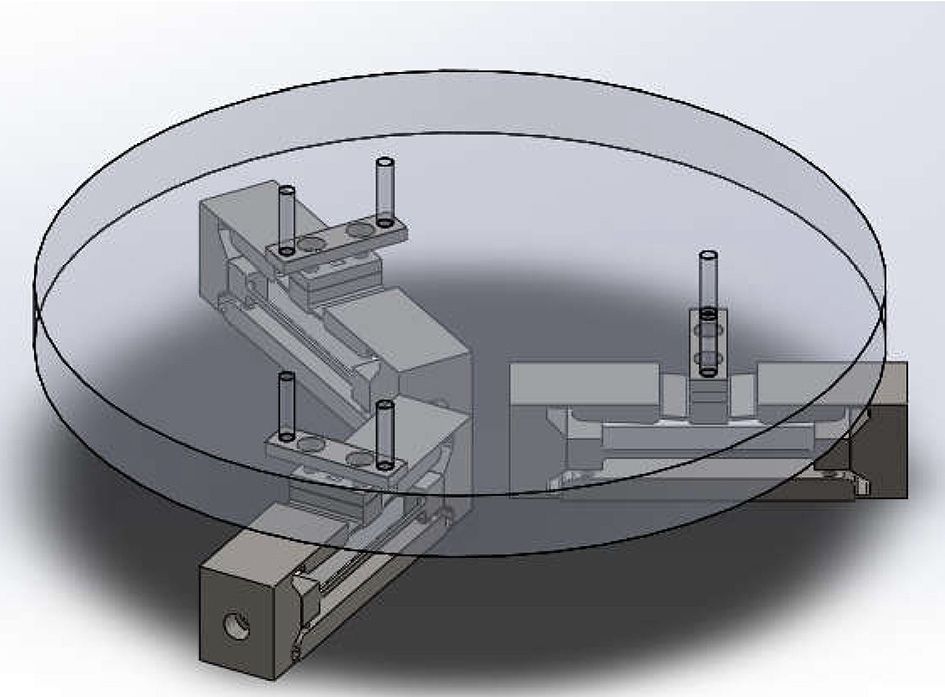

piezo stage

Operating precautions for MechaTrans®

Please confirm the following operating precautions before using MechaTrans®KK-Series.
