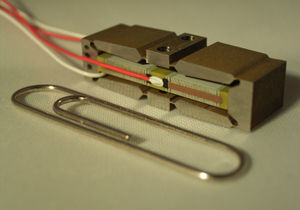

MTDD08S300F16[Datasheet Download]

Specifications

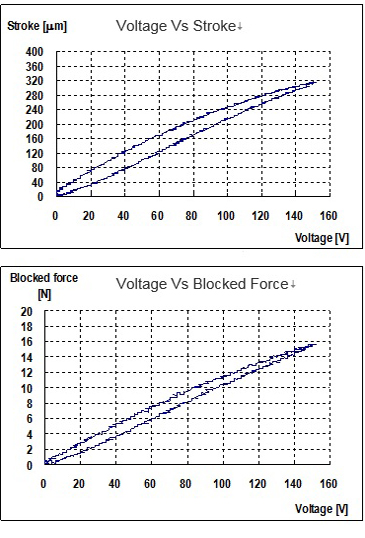

・Open-loop stroke： 300 μm @ 150V (fixed-free)
*Tolerance value: 240～360 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.053 N/μm
・Resonance frequency(blocked-free): 460 Hz
*Tolerance value: 345～575 Hz
・Blocked force: 16 N (*Tolerance value: 11～19N)
・Capacitance: 0.7 μF
・Dimension: 26x8x7 mm
・Mechanical interface: 2-M2 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 7.6 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

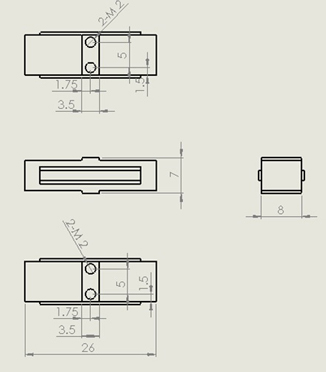

Geometry
