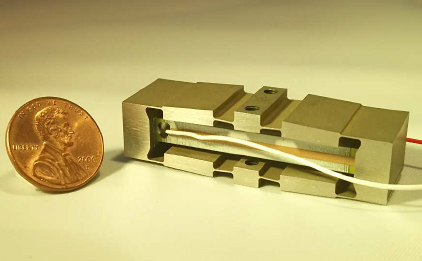

MTDD16S830F80[Datasheet Download]

Specifications

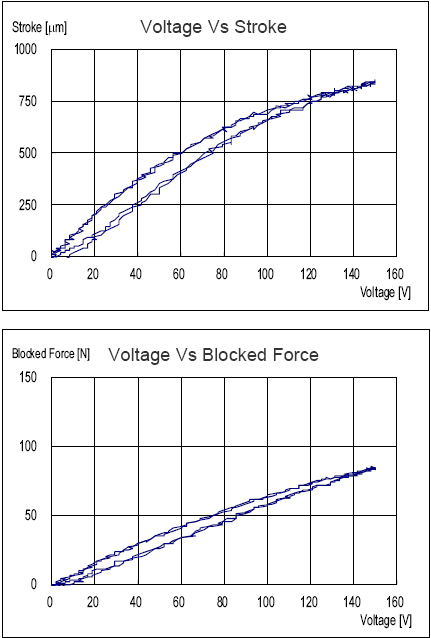

・Open-loop stroke： 830 μm @ 150V (fixed-free)
*Tolerance value: 660～1000 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.10 N/μm
・Resonance frequency(blocked-free): 230 Hz
*Tolerance value: 185～280 Hz
・Blocked force: 80 N (*Tolerance value: 64～96 N)
・Capacitance: 11.8 μF
・Dimension: 52x16x14 mm
・Mechanical interface: 2-M3 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 53 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

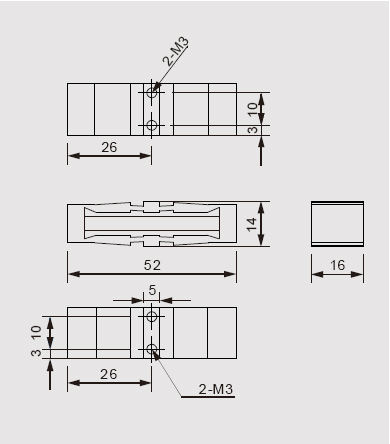

Geometry
