MTDD12S600F80[Datasheet Download]

Specifications

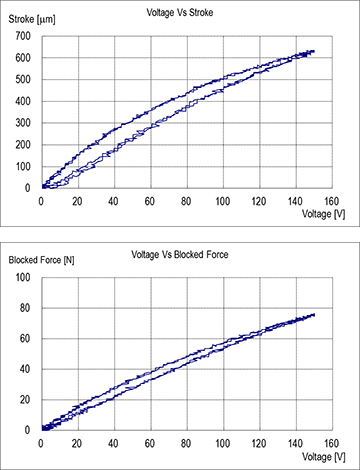

・Open-loop stroke： 600 μm @ 150V (fixed-free)
*Tolerance value: 480～720 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.13 N/μm
・Resonance frequency(fixed-free): 300 Hz
*Tolerance value: 240～360 Hz
・Blocked force: 80 N (*Tolerance value: 64.0～96.0N)
・Capacitance: 6.75 μF
・Dimension: 46.8x12x12.6 mm
・Mechanical interface: 2-M2.0 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 40 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

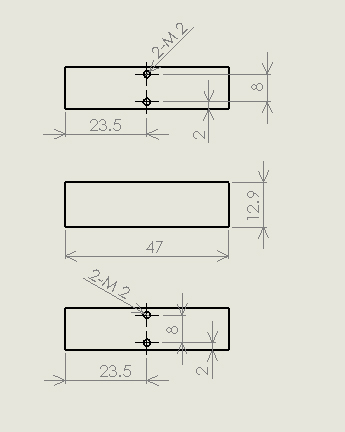

Geometry
