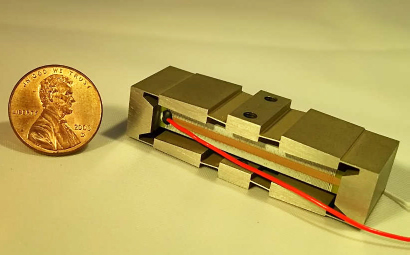

MTDD16S860F64[Datasheet Download]

Specifications

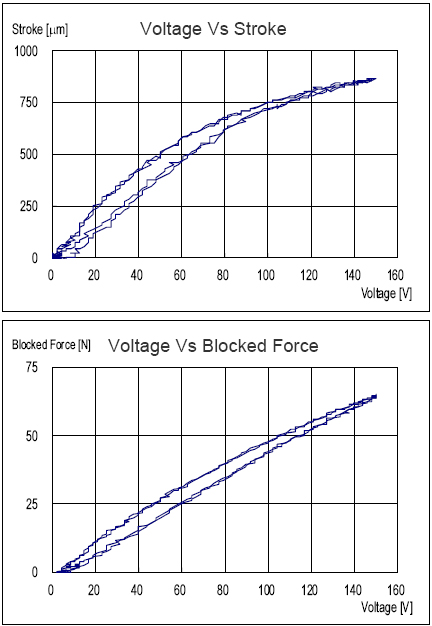

・Open-loop stroke： 860 μm @ 150V (fixed-free)
*Tolerance value: 688～1032 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.07 N/μm
・Resonance frequency(blocked-free): 195 Hz
*Tolerance value: 156～234 Hz
・Blocked force: 64 N (*Tolerance value: 51.2～76.8 N)
・Capacitance: 11.7 μF
・Dimension: 52x16x14 mm
・Mechanical interface: 2-M3 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 53 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

Geometry
