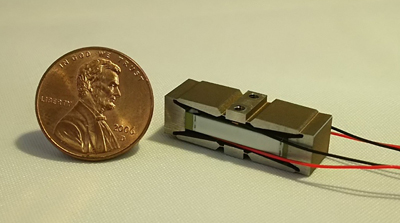

MTDD08S350F18[Datasheet Download]

Specifications

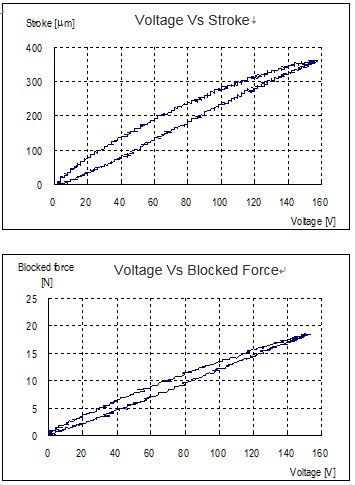

・Open-loop stroke： 350 μm @ 150V
*Tolerance value: 280～420 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.051 N/μm
・Resonance frequency(blocked-free): 500 Hz
*Tolerance value: 400～600 Hz
・Blocked force: 18 N (*Tolerance value: 14～23N)
・Capacitance: 0.8 μF
・Dimension: 26x8x7 mm
・Mechanical interface: 2-M2 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 7.4 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

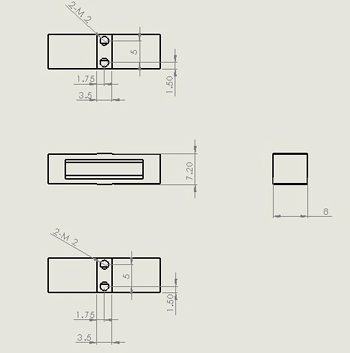

Geometry
