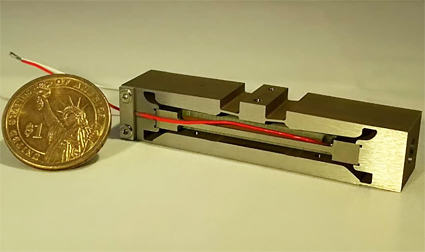

MTKK16S400F170R[Datasheet Download]

Specifications

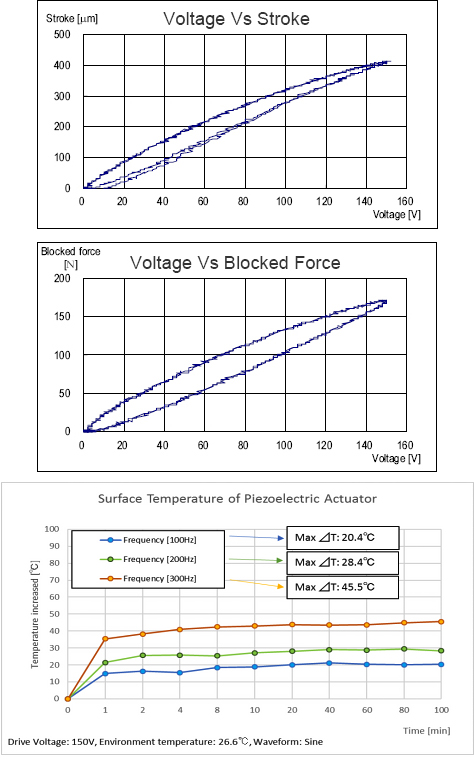

・Open-loop stroke： 400 μm @ 150V (fixed-free)
*Tolerance value: 320～480 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.43 N/μm
・Resonance frequency(fixed-free): 1200 Hz
*Tolerance value: 900～1500 Hz
・Blocked force: 170 N (*Tolerance value: 136～204N)
・Capacitance: 12.5 μF
・Dimension: 72x21x15 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 98.2 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

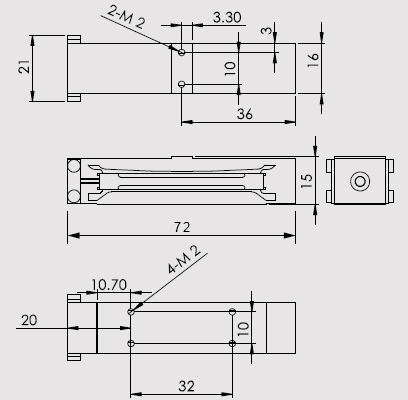

Geometry

Note 1 : Single pulse signal with MTDD1010 (External coil and resistor)

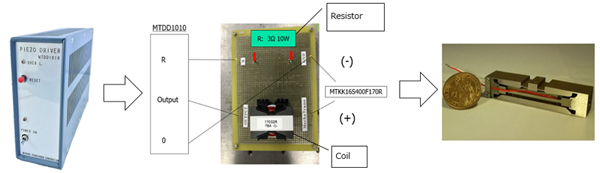

Setup:

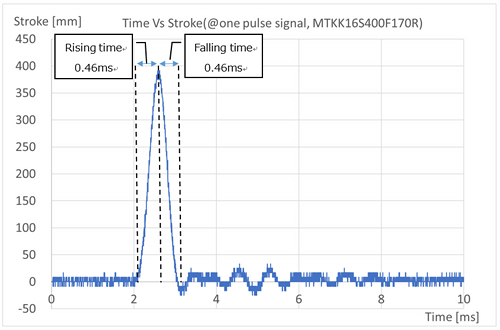

Result:

Conclusion:
・The MTKK16S400F170R has a short rising time (0.46ms) and short falling time (0.46ms).

Note 2 : Continuous pulse signal with MTDD1010 (External coil and resistor)

Setup:

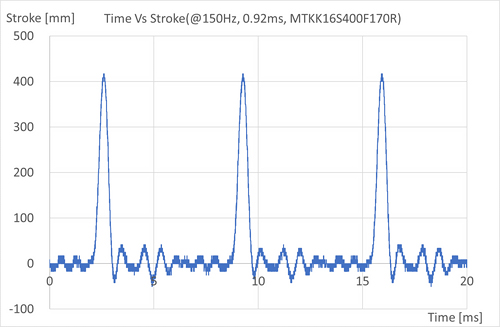

Result:

Conclusion:
・The MTKK16S400F170R can be driven continuously with a repeated frequency of 150Hz.
・The rising time and short falling time shown above is 0.46ms.
