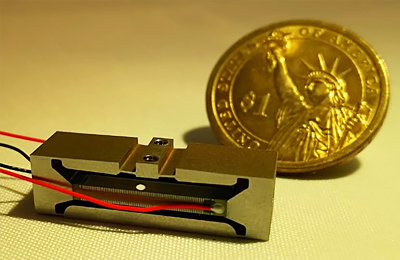

MTKK08S180F30[Datasheet Download]

Specifications

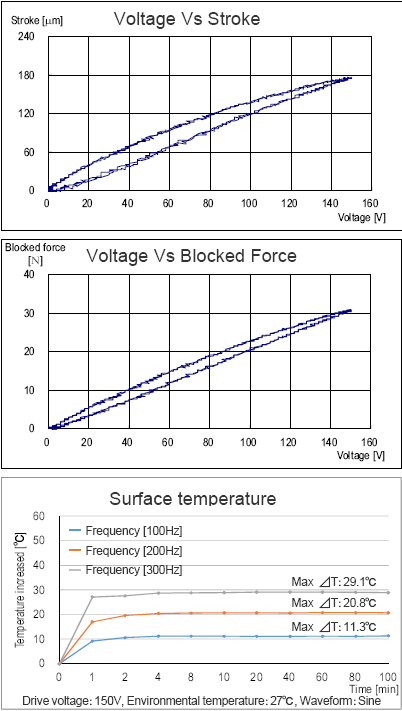

・Open-loop stroke： 180 μm @ 150V (fixed-free)
*Tolerance value: 144～216 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.17 N/μm
・Resonance frequency(fixed-free): 3000 Hz
*Tolerance value: 2400～3600 Hz
・Blocked force: 30 N (*Tolerance value: 24.0～36.0N)
・Capacitance: 0.87 μF
・Dimension: 28x8x8 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 8.9 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

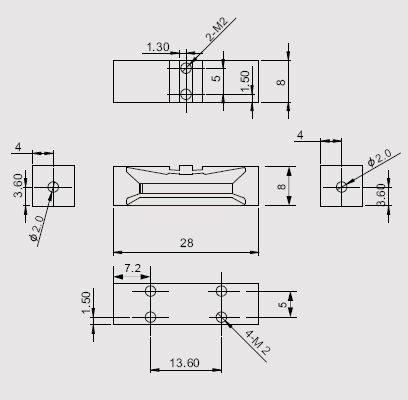

Geometry
