MTKK16S550F140R[Datasheet Download]

Specifications

・Open-loop stroke： 550 μm @ 150V (fixed-free)
*Tolerance value: 440～660 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.25 N/μm
・Resonance frequency(fixed-free): 970 Hz
*Tolerance value: 776～1164 Hz
・Blocked force: 140 N (*Tolerance value: 112～168N)
・Capacitance: 12.5 μF
・Dimension: 72x21x15 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 97.0 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

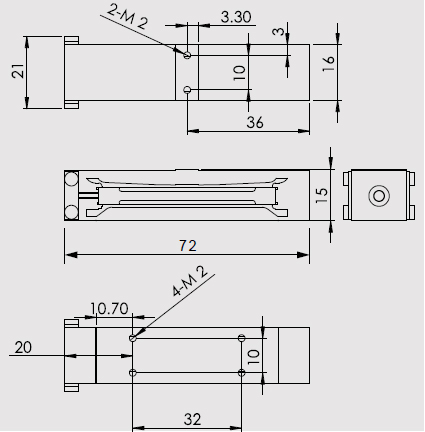

Geometry
