MTKK12S200F55NMVC　[Datasheet Download]

Specifications

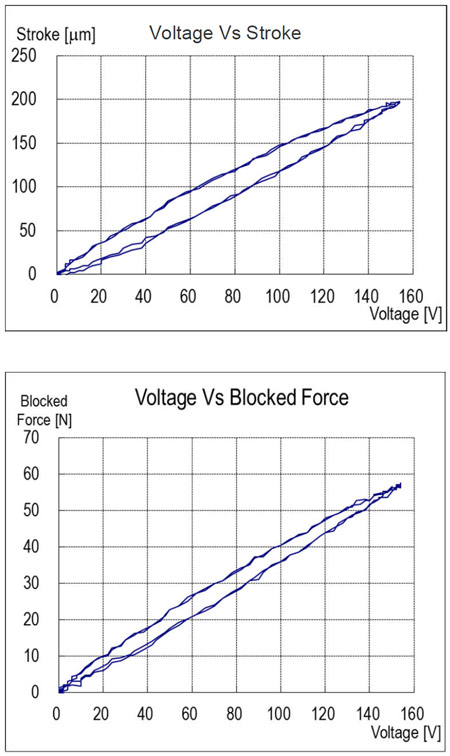

・Open-loop stroke： 200 μm @ 150V (fixed-free)
*Tolerance value: 150～250 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.28 N/μm
・Resonance frequency(fixed-free): 1500 Hz
*Tolerance value: 1125～1875 Hz
・Blocked force: 55 N (*Tolerance value: 41～69N)
・Capacitance: 1.28 μF
・Dimension: 56x12x16 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 51.6 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

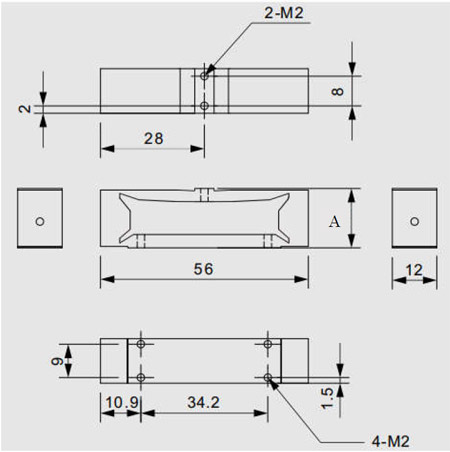

Geometry
