MTKK03S45F4[Datasheet Download]

Specifications

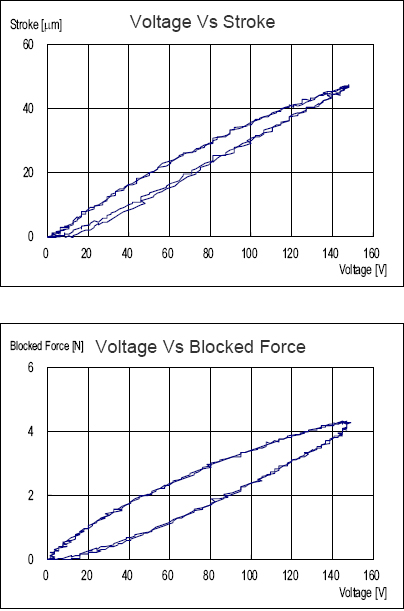

・Open-loop stroke： 45 μm @ 150V (fixed-free)
*Tolerance value: 36～54 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.09 N/μm
・Resonance frequency(fixed-free): 5100 Hz
*Tolerance value: 4080～6120 Hz
・Blocked force: 4 N (*Tolerance value: 3.0～5.0N)
・Capacitance: 0.03 μF
・Dimension: 15x3x4.8 mm
・Mechanical interface: 1-M2.0 Tapped hole and 2-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 1.0 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

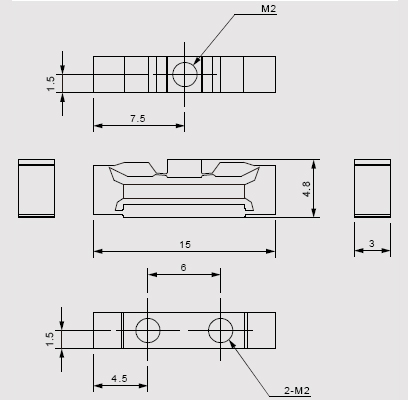

Geometry
