MTKK05S300F80PS[Datasheet Download]

Specifications

・Open-loop stroke： 300 µm @ 150V (fixed-free)
*Tolerance value: 240～360 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.27 N/µm
・Resonance frequency(fixed-free): 1500 Hz
*Tolerance value: 1200～1800 Hz
・Blocked force: 80 N (*Tolerance value: 64～96N)
・Capacitance: 3.22 µF
・Dimension: 58x5x25 mm
・Mechanical interface: 1-M3 Tapped hole and 3-M2 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 36 g

Option

・Mechanical interface can be tailor with an addition option fees.

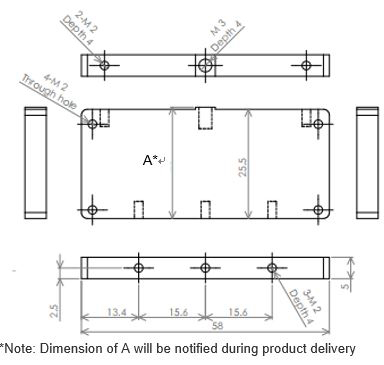

Geometry
