MTKK12S100F40[Datasheet Download]

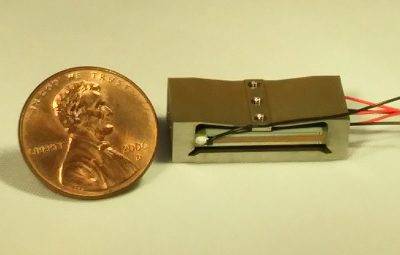

MTKK12S100F40

Specifications

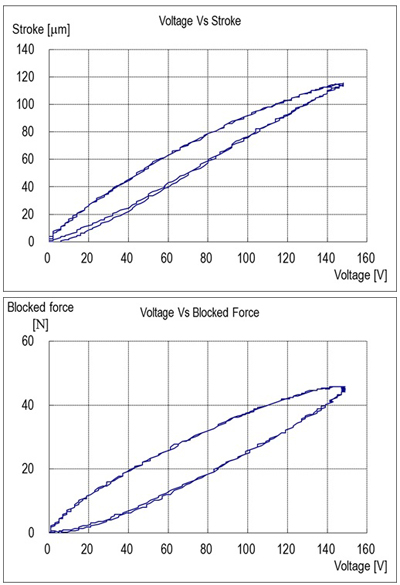

・Open-loop stroke： 100 μm @ 150V (fixed-free)
*Tolerance value: 80～120 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.40 N/μm
・Resonance frequency(fixed-free): 6600 Hz
*Tolerance value: 5280 ～ 7920 Hz
・Blocked force: 40 N (*Tolerance value: 32～48N)
・Capacitance: 1.4 μF
・Dimension: 24x12x7.13 mm
・Mechanical interface: 3-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 10.0 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

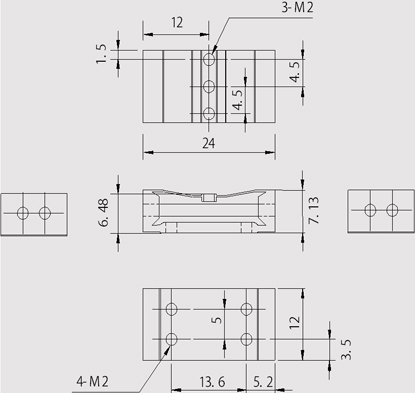

Geometry
