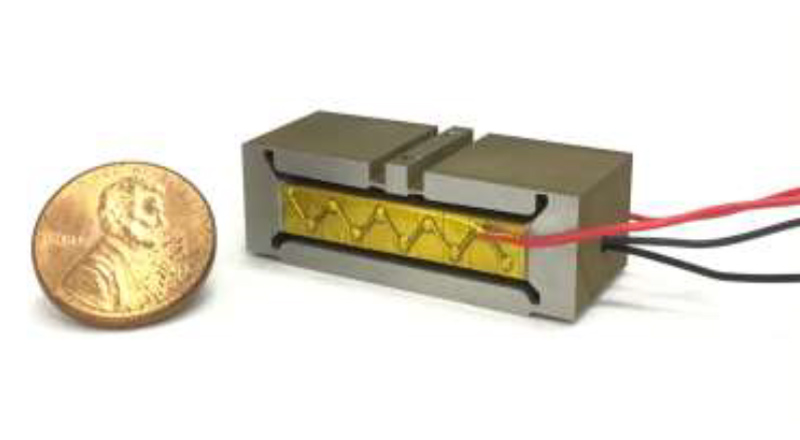

MTKK16S250F180[Datasheet Download]

Specifications

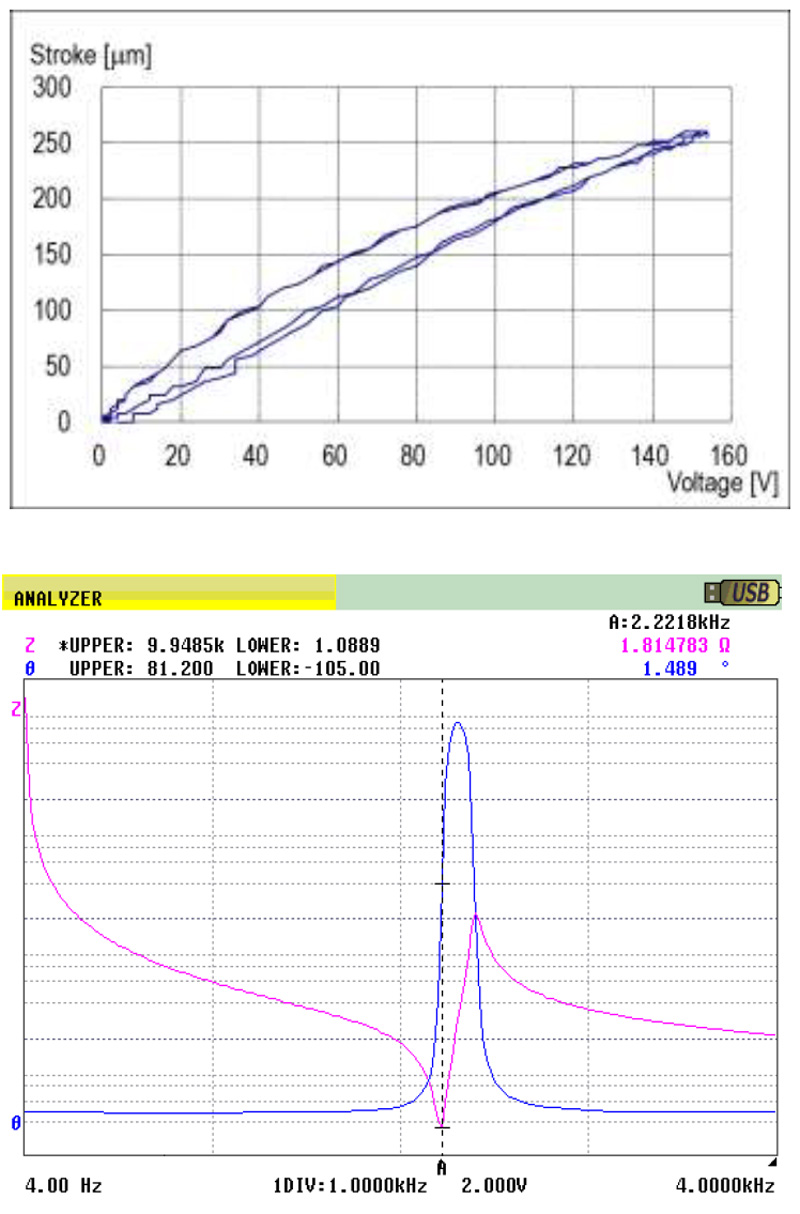

・Open-loop stroke： 20 μm @ 150V (fixed-free)
*Tolerance value: 200～300 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.72 N/μm
・Resonance frequency(fixed-free): 2200 Hz
*Tolerance value: 1650～2750 Hz
・Blocked force: 180 N (*Tolerance value: 135～225N)
・Capacitance: 5.2 μF
・Dimension: 40x16x11.8 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 41.0 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

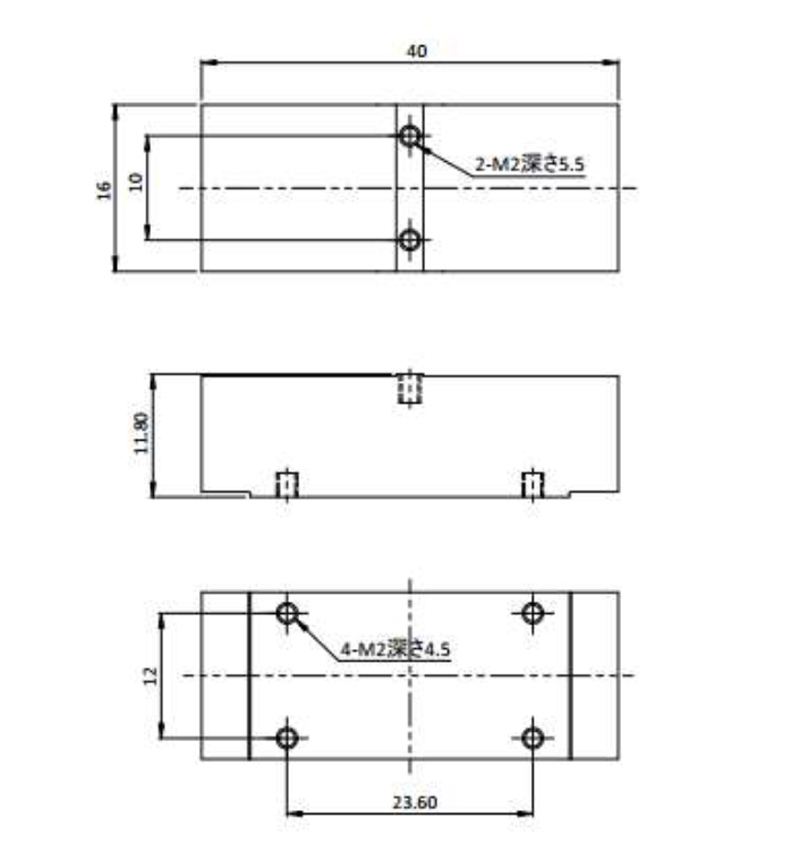

Geometry
