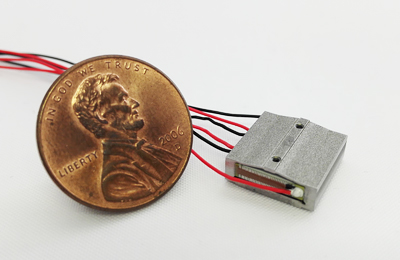

MTK12S18f25000[Datasheet Download]

Specifications

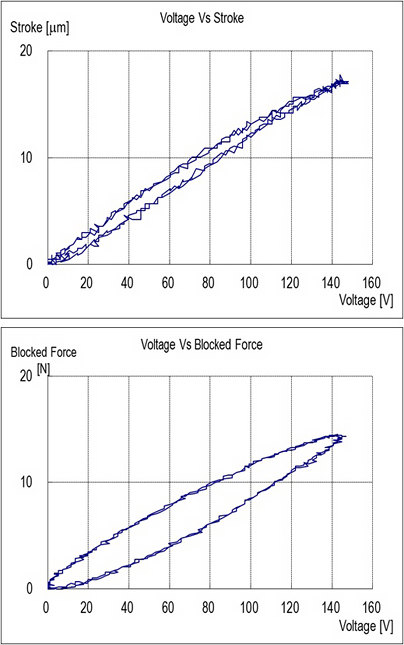

・Open-loop stroke： 18 μm @ 150V (fixed-free)
*Tolerance value: 14.4～22.5 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.8 N/μm
・Resonance frequency(fixed-free): 25000 Hz
*Tolerance value: 20000 ～ 31250 Hz
・Blocked force: 14 N (*Tolerance value: 10.5～17.5N)
・Capacitance: 0.6 μF
・Dimension: 12x4.6x12 mm
・Mechanical interface: 4-M1.4 Tapped hole and 2-M1.0 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 3.9 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

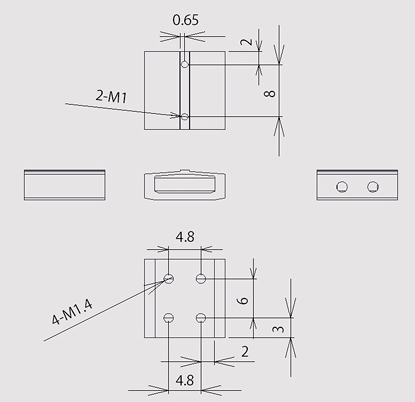

Geometry
